GUGLER – worldwide

For more than 100 years, our family has been dedicated to the development and construction of water turbines, small hydropower plants and the generation of electricity from hydropower.
With more than 1,000 successfully installed turbines, the third-generation GUGLER family is one of the world's leading suppliers of water turbines in the range from 50 kW to 40 MW.

More detailed information about selected references can be found in the interactive world map below.

Total Output (kW)
Flow (m3/s)
Runner Diameter

Taraza II, Colombia, 2024

Scope of Supply: Francis Turbine (1x 10 m³/s; 1x 5 m³/s), Butterfly Valve, HPU, Generator, Control systems & Protection, SCADA

Number of Units
2
Total Output (kW)
9 816
Head of water (m)
72
Flow (m3/s)
10
Runner Diameter (mm)
1 084

Glarey, Switzerland, 2024

Scope of Supply: Francis Turbines (1x 5,25 m³/s; 1x 1,8 m³/s), Generators, Butterfly Valves, Control System, Powerhouse Crane, Bifurcation Pipe

Number of Units
2
Total Output (kW)
1 930
Head of water (m)
30.5
Flow (m3/s)
5.25
Runner Diameter (mm)
880

Kuroda, Japan, 2023

Scope of Supply: Pelton Turbine, Generator, Butterfly Valve, HPU

Number of Units
1
Total Output (kW)
2 213
Head of water (m)
228.17
Flow (m3/s)
1.14
Runner Diameter (mm)
997

Famagosta, Italy, 2023

Scope of Supply: Kaplan Turbine

Number of Units
1
Total Output (kW)
270
Head of water (m)
2.5
Flow (m3/s)
12
Runner Diameter (mm)
1 600

Alejandría II, Colombia, 2023

Scope of Supply: Kaplan Turbine, Gear Box, Generator, HPU, Control System, Medium Voltage Switchgear

Number of Units
1
Total Output (kW)
2 148
Head of water (m)
14.76
Flow (m3/s)
16
Runner Diameter (mm)
1 700

Dak Di 1, Vietnam, 2022

Scope of Supply: Francis Turbine, Butterfly Valve, HPU, Generator, Cooling System

Number of Units
2
Total Output (kW)
30 300
Head of water (m)
225.59
Flow (m3/s)
7.32
Runner Diameter (mm)
920

Las Violetas, Colombia, 2022

Scope of Supply: Francis Turbine, Butterfly Valve, HPU, Generator, Control systems & Protection, SCADA

Number of Units
1
Total Output (kW)
975
Head of water (m)
63
Flow (m3/s)
1.7
Runner Diameter (mm)
485

Dak Di 2, Vietnam, 2022

Scope of Supply: Francis Turbine, Butterfly Valve, HPU, Generator, Cooling System

Number of Units
2
Total Output (kW)
22 368
Head of water (m)
98.42
Flow (m3/s)
12.38
Runner Diameter (mm)
1 200

Krkori, Montenegro, 2021

Scope of Supply: Pelton Turbine, Butterfly Valve, Hydraulic Power Unit, Generator

Number of Units
1
Total Output (kW)
398
Head of water (m)
90
Flow (m3/s)
0.5
Runner Diameter (mm)
765

Bach Dang, Vietnam, 2021

Scope of Supply: Kaplan Turbine, Generator, Hydraulic Power Unit, Control- and Protection-System, SCADA, Medium Voltage Switchgears

Number of Units
2
Total Output (kW)
5 304
Head of water (m)
21
Flow (m3/s)
13.85
Runner Diameter (mm)
1 550

Shin Seocheon, South Korea, 2021

Scope of Supply: Kaplan Turbine, Gear Box, Hydraulic Power Unit,

Number of Units
1
Total Output (kW)
3 821
Head of water (m)
9.7
Flow (m3/s)
43.3
Runner Diameter (mm)
2 600

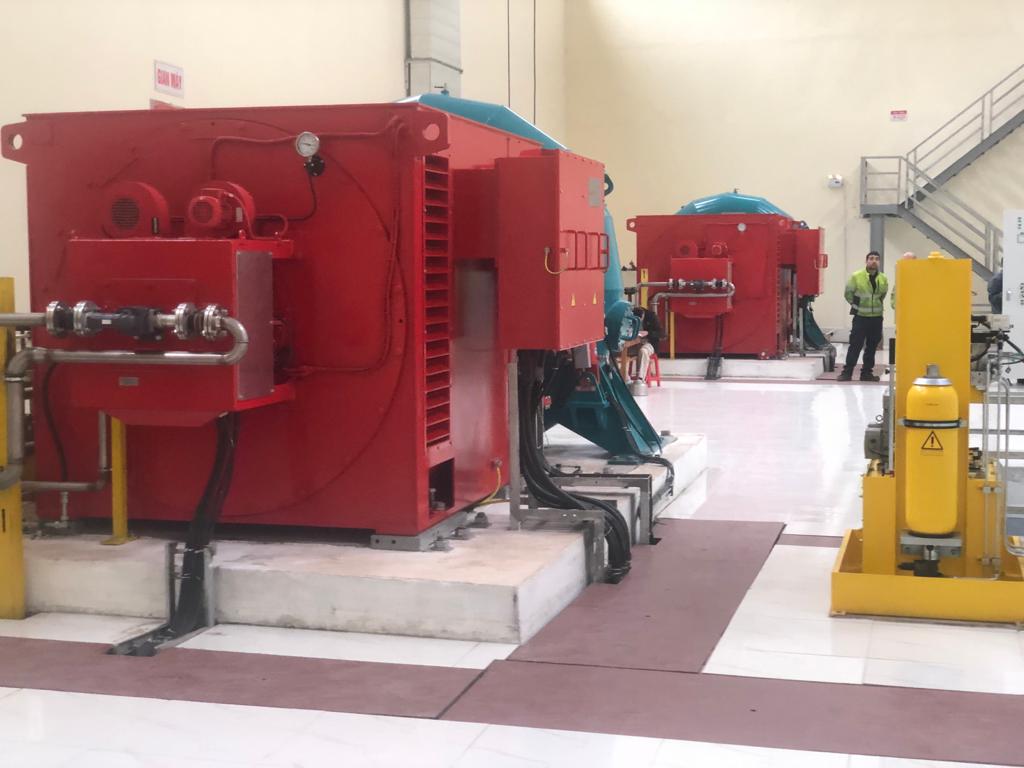

Nam Tha 4, Vietnam, 2020

Scope of Supply: Francis Turbine, Generator, HPU, Inlet valve

Number of Units
2
Total Output (kW)
17 468
Head of water (m)
194
Flow (m3/s)
4.9
Runner Diameter (mm)
725

Kota 2, Malaysia, 2020

Scope of Supply: Francis Turbine, Generator, HPU, Inlet valve, Cooling Circuit, Control systems, Medium Voltage System, SCADA, Transformer

Number of Units
3
Total Output (kW)
12 111
Head of water (m)
222
Flow (m3/s)
2
Runner Diameter (mm)
539

Haut Bens, France, 2020

Scope of Supply: Pelton Turbine, HPU, Generator

Number of Units
1
Total Output (kW)
1 805
Head of water (m)
255.7
Flow (m3/s)
0.8
Runner Diameter (mm)
645

Giciye III, Rwanda, 2020

Scope of Supply: turbines, generators, cooling system, spherical valves, penstock protection valve, hydraulic power unit, control- and protection system, medium voltage switchgear and transformers

Number of Units
2
Total Output (kW)
9 960
Head of water (m)
274.6
Flow (m3/s)
2
Runner Diameter (mm)
891

Deanston, United Kingdom, 2020

Scope of Supply: Kaplan Tubular Turbine, Generator, Hydraulic Power Unit

Number of Units
1
Total Output (kW)
355
Head of water (m)
9.2
Flow (m3/s)
4.2
Runner Diameter (mm)
900

Duved, Sweden, 2020

Scope of Supply: Francis Turbine, Generator, Spherical Valve, Hydraulic Power Unit, Drainage and Dewatering

Number of Units
1
Total Output (kW)
6 483
Head of water (m)
204.4
Flow (m3/s)
3.45
Runner Diameter (mm)
670

Güce, Türkiye, 2020

Scope of Supply: Pelton Turbine, Generator, HPU, Spherical Valves, Automation and Control System, Electrical Power System

Number of Units
2
Total Output (kW)
13 200
Head of water (m)
372.5
Flow (m3/s)
2
Runner Diameter (mm)
779

Tanjung Tirta, Indonesia, 2019

Scope of Supply: Francis Turbine, Butterfly Valve, HPU, Generator, Control & Protection Systems, SCADA

Number of Units
2
Total Output (kW)
10 000
Head of water (m)
92.3
Flow (m3/s)
6
Runner Diameter (mm)
850

Bineng, Philipines, 2019

Scope of Supply: Pelton Turbine, Spherical Valve, HPU, Generator, Electrical switchgears, Control and Protection System

Number of Units
2
Total Output (kW)
20 654
Head of water (m)
460.78
Flow (m3/s)
2.52
Runner Diameter (mm)
938

Krueng Isep 3rd Unit, Indonesia, 2019

Scope of Supply: Turn key (3rd unit vertical Pelton (6 jets), Valve, HPU, Generator, LV+MV Switchgears, Transformer, SCADA)

Number of Units
1
Total Output (kW)
11 946
Head of water (m)
310
Flow (m3/s)
4.55
Runner Diameter (mm)
1 100

Sleitustaðavirkjun, Iceland, 2019

Scope of Supply: Kaplan Turbine, Generator, Butterfly Valve, Hydraulic Power Unit, Control- and Protection-System

Number of Units
1
Total Output (kW)
246
Head of water (m)
9.5
Flow (m3/s)
2.8
Runner Diameter (mm)
710

Bodorna, Georgia, 2018

Scope of Supply: Turbine, Generator, Hydraulic Power Unit, Control System, SCADA, Medium Voltage System, Transformer, Diesel Generator

Number of Units
1
Total Output (kW)
2 556
Head of water (m)
8.1
Flow (m3/s)
32
Runner Diameter (mm)
2 240

La Yeguadita, Panama, 2018

Scope of Supply: Turbine, Generator, Hydraulic Power Unit, Control System, SCADA, Medium Voltage System, Transformer

Number of Units
1
Total Output (kW)
886
Head of water (m)
48.6
Flow (m3/s)
2
Runner Diameter (mm)
570

Obuse, Japan, 2018

Scope of Supply: Francis Turbine, Generator, Butterfly Valve, Hydraulic Power Unit, Control System

Number of Units
1
Total Output (kW)
196
Head of water (m)
14.38
Flow (m3/s)
1.5
Runner Diameter (mm)
620

La Yeguada, Panama, 2018

Scope of Supply: Pelton Turbine Horizontal 3 Jets, Butterfly Valve, HPU, Generator, Electrical switchgears, Control and Protection System, Tranformers

Number of Units
2
Total Output (kW)
7 316
Head of water (m)
265.14
Flow (m3/s)
1.55
Runner Diameter (mm)
912

Hintergössgraben, Austria, 2017

Scope of Supply: Turbine, Generator, Inlet Valve, HPU, Bifucation Pipe

Number of Units
1
Total Output (kW)
1 035
Head of water (m)
111.85
Flow (m3/s)
1.05
Runner Diameter (mm)
711

Vordergössgraben, Austria, 2017

Scope of Supply: Turbine, Generator, Inlet Valve, HPU, Bifucation Pipe

Number of Units
1
Total Output (kW)
1 405
Head of water (m)
91.52
Flow (m3/s)
1.74
Runner Diameter (mm)
901

Giorlandina, Italy, 2017

Scope of Supply: Kaplan Turbine, Generator Design, Hydraulic Power Unit

Number of Units
2
Total Output (kW)
516
Head of water (m)
2.23
Flow (m3/s)
16.00
Runner Diameter (mm)
2 100

Regio Parco, Italy, 2017

Scope of Supply: Kaplan Turbine, Generator Design, Hydraulic Power Unit

Number of Units
1
Total Output (kW)
454
Head of water (m)
2.40
Flow (m3/s)
21.00
Runner Diameter (mm)
2 300

Cutzán, Guatemala, 2017

Scope of Supply: Pelton Turbine, Butterfly Valve, HPU, Generator, Electrical switchgears, Control and Protection System, SCADA

Number of Units
1
Total Output (kW)
2 551
Head of water (m)
160.2
Flow (m3/s)
1.8
Runner Diameter (mm)
850

Clywedog, United Kingdom, 2017

Scope of Supply: Kaplan Tubular Turbine, Generator, Vacuum Pump, Hydraulic Power Unit, Control System

Number of Units
1
Total Output (kW)
108
Head of water (m)
6
Flow (m3/s)
2
Runner Diameter (mm)
630

Cumpeo, Chile, 2016

Scope of Supply: 2 Francis Turbines, Generators, Butterfly Valves, Hydraulic Power Units, Control and Protection System, MV Switchgear, Transformer

Number of Units
2
Total Output (kW)
5 938
Head of water (m)
94.4
Flow (m3/s)
3.5
Runner Diameter (mm)
630

Tranquil, Chile, 2016

Scope of Supply: 1 Pelton Turbine, Generator, Butterfly Valve, Hydraulic Power Unit, Control and Protection System, MV Switchgear, Transformer

Number of Units
1
Total Output (kW)
3 000
Head of water (m)
168.5
Flow (m3/s)
2.0
Runner Diameter (mm)
1 048

Muara, Indonesia, 2016

Scope of Supply: Francis Turbine, Butterfly Valve, HPU, Generator, Control & Protection Systems, Station Service Transformer

Number of Units
2
Total Output (kW)
2 242
Head of water (m)
94
Flow (m3/s)
1.3
Runner Diameter (mm)
460

Knottingley, United Kingdom, 2016

Scope of Supply: 2 x Kaplan Turbines, Generators, Hydraulic Power Units, Control & Electrical System

Number of Units
2
Total Output (kW)
660
Head of water (m)
2.63
Flow (m3/s)
14.10
Runner Diameter (mm)
1 850

Pencaligue 1, Honduras, 2016

Scope of Supply: Pelton Turbine, Generator, Hydraulic Power Unit, Inlet Valve, El. Control & Protection System

Number of Units
2
Total Output (kW)
14 668
Head of water (m)
413
Flow (m3/s)
2.0
Runner Diameter (mm)
1 365

Pencaligue 2, Honduras, 2016

Scope of Supply: Pelton Turbine, Generator, Hydraulic Power Unit, Inlet Valve, El. Control & Protection System

Number of Units
1
Total Output (kW)
3 299
Head of water (m)
413
Flow (m3/s)
0.9
Runner Diameter (mm)
910

Rwaza I, Rwanda, 2016

Scope of Supply: Francis Turbine, Butterfly Valve, HPU, Generator, Control & Protection Systems, Transformers, Diesel Generator

Number of Units
2
Total Output (kW)
3 084
Head of water (m)
29.09
Flow (m3/s)
6
Runner Diameter (mm)
1 065

Juan Garcia, Colombia, 2016

Scope of Supply: Pelton Turbines, Generators, Butterfly Valves, Hydraulic Power Unit, Control- and Protection-System

Number of Units
2
Total Output (kW)
4 710
Head of water (m)
264
Flow (m3/s)
1
Runner Diameter (mm)
1 090

Rugezi, Rwanda, 2016

Scope of Supply: Francis Turbine, Butterfly Valve, HPU, Generator, Control system, Scada

Number of Units
2
Total Output (kW)
2 756
Head of water (m)
135
Flow (m3/s)
1.15
Runner Diameter (mm)
425

ABOU ALI, Lebanon, 2015

Scope of Supply:

Number of Units
1
Total Output (kW)
3 639
Head of water (m)
274
Flow (m3/s)
1.5
Runner Diameter (mm)
895

Montandon, Chile, 2015

Scope of Supply:

Number of Units
1
Total Output (kW)
2 880
Head of water (m)
327
Flow (m3/s)
1
Runner Diameter (mm)
970

Marañon, Peru, 2015

Scope of Supply: Francis Turbine, Butterfly Valve, HPU, Generator, all Electrical Switchgears, Control & Protection Systems, SCADA, Transformers

Number of Units
3
Total Output (kW)
19 683
Head of water (m)
84.5
Flow (m3/s)
8.66
Runner Diameter (mm)
1 115

Stubenberg, Austria, 2015

Scope of Supply: Francis Turbine, Inlet Valve , Bifurcation, Generator, Hydraulic Power Unit

Number of Units
2
Total Output (kW)
1 698
Head of water (m)
23.4
Flow (m3/s)
4
Runner Diameter (mm)
850

Poza Verde, Guatemala, 2015

Scope of Supply: Kaplan Spiral Turbine, Generator, HPU, Butterfly Valve, Drainage & Dewatering System, Control & Protection System, Station Service System, SCADA System

Number of Units
1
Total Output (kW)
1 801
Head of water (m)
22
Flow (m3/s)
9
Runner Diameter (mm)
1 160

Terem I & II, Kenya, 2015

Scope of Supply: Vertical Pelton Turbine, Generator, HPU, Control & Protection Equipment, MV Switchgear, Diesel Generator

Number of Units
2
Total Output (kW)
5 720
Head of water (m)
210
Flow (m3/s)
1.58
Runner Diameter (mm)
769

Zapece, Bosnia-Herzegovina, 2014

Scope of Supply: Fracis Turbine, Generator

Number of Units
2
Total Output (kW)
5 440
Head of water (m)
77.69
Flow (m3/s)
3.65
Runner Diameter (mm)
714

Alejandria, Colombia, 2014

Scope of Supply:

Number of Units
2
Total Output (kW)
15 378
Head of water (m)
106.5
Flow (m3/s)
8
Runner Diameter (mm)
930

Carpapata III, Peru, 2014

Scope of Supply: Francis Turbine, Generator, Inlet Valve, Hydraulic Power Unit

Number of Units
2
Total Output (kW)
12 874
Head of water (m)
113.8
Flow (m3/s)
6.35
Runner Diameter (mm)
910

Sillaro, Italy, 2014

Scope of Supply: Kaplan Tube Turbine, Generator, Hydraulic Power Unit, Inletvalve

Number of Units
1
Total Output (kW)
458
Head of water (m)
10.20
Flow (m3/s)
5
Runner Diameter (mm)
1 000

Cocuyo, Colombia, 2014

Scope of Supply:

Number of Units
1
Total Output (kW)
823
Head of water (m)
311
Flow (m3/s)
0.3
Runner Diameter (mm)
592

Giciye II, Rwanda, 2014

Scope of Supply:

Number of Units
2
Total Output (kW)
4 286
Head of water (m)
121.9
Flow (m3/s)
2
Runner Diameter (mm)
1 038

Gostivisht, Albania, 2014

Scope of Supply:

Number of Units
1
Total Output (kW)
702
Head of water (m)
80
Flow (m3/s)
1
Runner Diameter (mm)
908

Govza I, Bosnia-Herzegovina, 2014

Scope of Supply:

Number of Units
1
Total Output (kW)
3 740
Head of water (m)
122.02
Flow (m3/s)
3.4
Runner Diameter (mm)
700

Govza II, Bosnia-Herzegovina, 2014

Scope of Supply:

Number of Units
1
Total Output (kW)
1 544
Head of water (m)
122.21
Flow (m3/s)
1.4
Runner Diameter (mm)
481

Hagneck, Switzerland, 2014

Scope of Supply: Kaplan Pit Turbine, Generator, Inletvalve, Hydraulic Power Unit

Number of Units
1
Total Output (kW)
280
Head of water (m)
8.14
Flow (m3/s)
3.8
Runner Diameter (mm)
900

Krueng Isep, Indonesia, 2014

Scope of Supply: Turn key (2 vertical Pelton-6 jets, Valve, Generators, Switchgears, Transformer)

Number of Units
2
Total Output (kW)
13 262
Head of water (m)
330
Flow (m3/s)
2.275
Runner Diameter (mm)
976

Owala, Sri Lanka, 2014

Scope of Supply: Open-Flume Turbine

Number of Units
2
Total Output (kW)
3 400
Head of water (m)
5.9
Flow (m3/s)
28.9
Runner Diameter (mm)
2 550

Yarucaya, Peru, 2014

Scope of Supply: Francis Turbine, Butterfly Valve, Maintenance Valve, Singer Pressure Sustaining Valve, Y-Manifold, HPU, Generator, Electrical Switchgears, Control & Protection Systems, SCADA, Transformers

Number of Units
2
Total Output (kW)
18 068
Head of water (m)
168.9
Flow (m3/s)
6
Runner Diameter (mm)
900

Carpasina, Italy, 2014

Scope of Supply: Pelton Turbine, Valve, Generator Design

Number of Units
1
Total Output (kW)
32
Head of water (m)
66.8
Flow (m3/s)
0.2
Runner Diameter (mm)
545

Eco-Tizingal, Panama, 2014

Scope of Supply: Pelton Turbine, Generator, Hydraulic Power Unit, Inlet Valve, El. Control & Protection System

Number of Units
1
Total Output (kW)
741
Head of water (m)
152.8
Flow (m3/s)
0.55
Runner Diameter (mm)
554

Tubao, Philippines, 2014

Scope of Supply: Tubao Mini Hydro Electric Corp.

Number of Units
1
Total Output (kW)
1 514
Head of water (m)
24
Flow (m3/s)
7
Runner Diameter (mm)
1 000

Pianascio, Switzerland, 2014

Scope of Supply: Pelton Turbine, Valve, Synchronous Generator, Power Unit, Control and Protection system

Number of Units
1
Total Output (kW)
32
Head of water (m)
140
Flow (m3/s)
0.026
Runner Diameter (mm)
318

Bajo de Mina, Panama, 2013

Scope of Supply: Francis Turbine, Generator, Inlet Valve, Hydraulic Power Unit, Control and Protection System

Number of Units
1
Total Output (kW)
604
Head of water (m)
17.6
Flow (m3/s)
3.8
Runner Diameter (mm)
880

Ücgen, Türkiye, 2013

Scope of Supply: Francis Turbine, Generator, Inletvalve, Hydraulic Power Unit

Number of Units
2
Total Output (kW)
3 524
Head of water (m)
113.74
Flow (m3/s)
1.75
Runner Diameter (mm)
1 649

Tokmadin, Türkiye, 2013

Scope of Supply: Pelton Turbine, Generator, Inletvalve, Hydraulic Power Unit

Number of Units
2
Total Output (kW)
3 600
Head of water (m)
188.35
Flow (m3/s)
1.1
Runner Diameter (mm)
735

Brajcino 2, Macedonia, 2013

Scope of Supply: Pelton Turbine, 6 Jets, Inletvalve, Generator, Hydraulicpowerunit, Automation and Controlequipment, Switchgear, Powertransformer

Number of Units
1
Total Output (kW)
1 517
Head of water (m)
111.03
Flow (m3/s)
1.55
Runner Diameter (mm)
845

San Jose, Guatemala, 2013

Scope of Supply:

Number of Units
1
Total Output (kW)
430
Head of water (m)
94
Flow (m3/s)
0.525
Runner Diameter (mm)
649

San Giovanni Bianco, Italy, 2013

Scope of Supply: Kaplan-Schachtturbine mit Riemenantrieb

Number of Units
1
Total Output (kW)
225
Head of water (m)
5.6
Flow (m3/s)
4.5
Runner Diameter (mm)
1 000

Galicnik 3, Macedonia, 2013

Scope of Supply: Pelton Turbine, 3 Jets, Inletvalve, Generator, Hydraulicpowerunit, Automation and Controlequipment, Switchgear, Powertransforme

Number of Units
1
Total Output (kW)
1 303
Head of water (m)
241.38
Flow (m3/s)
0.61
Runner Diameter (mm)
630

Garessio 1 – EPF, Italy, 2013

Scope of Supply:

Number of Units
1
Total Output (kW)
445
Head of water (m)
10
Flow (m3/s)
5
Runner Diameter (mm)
1 000

As Samra, Jordan, 2013

Scope of Supply: Francis Turbine, Generator, Inletvalve, Hydraulicpowerunit, Control and Electrical Equipment

Number of Units
1
Total Output (kW)
515
Head of water (m)
41.87
Flow (m3/s)
1.4
Runner Diameter (mm)
460

Gradecka, Macedonia, 2013

Scope of Supply:

Number of Units
1
Total Output (kW)
936
Head of water (m)
303.6
Flow (m3/s)
0.350
Runner Diameter (mm)
707

Patiska, Macedonia, 2013

Scope of Supply: Pelton Turbine, 3 Jets, Inletvalve, Generator, Hydraulicpowerunit, Automation and Controlequipment, Switchgear, Powertransforme

Number of Units
1
Total Output (kW)
716
Head of water (m)
163.6
Flow (m3/s)
0.5
Runner Diameter (mm)
685

Kizilcam, Türkiye, 2013

Scope of Supply: Francis Turbine, Generator

Number of Units
2
Total Output (kW)
1 792
Head of water (m)
77.97
Flow (m3/s)
1.3
Runner Diameter (mm)
466

BECHARRÉ, Lebanon, 2013

Scope of Supply:

Number of Units
1
Total Output (kW)
1 844
Head of water (m)
277
Flow (m3/s)
0.75
Runner Diameter (mm)
668

Strasbourg, France, 2013

Scope of Supply: Kaplan Pit Turbine, Generator, Inletvalve, Hydraulicpowerunit

Number of Units
2
Total Output (kW)
1 144
Head of water (m)
12.12
Flow (m3/s)
6.9
Runner Diameter (mm)
1 030

Rjukandi, Iceland, 2013

Scope of Supply:

Number of Units
1
Total Output (kW)
1 734
Head of water (m)
178
Flow (m3/s)
1.1
Runner Diameter (mm)
722

Novaci 1, Romania, 2012

Scope of Supply:

Number of Units
2
Total Output (kW)
860
Head of water (m)
48.7
Flow (m3/s)
1
Runner Diameter (mm)
422

Novaci 5, Romania, 2012

Scope of Supply:

Number of Units
1
Total Output (kW)
583
Head of water (m)
32.5
Flow (m3/s)
2.200
Runner Diameter (mm)
680

Golemacha, Macedonia, 2012

Scope of Supply:

Number of Units
1
Total Output (kW)
424
Head of water (m)
137.8
Flow (m3/s)
0.350
Runner Diameter (mm)
630

Valtorta – EPF (Pelton), Italy, 2012

Scope of Supply:

Number of Units
2
Total Output (kW)
1 650
Head of water (m)
208
Flow (m3/s)
0.45
Runner Diameter (mm)
773

Valtorta – EPF (Francis), Italy, 2012

Scope of Supply:

Number of Units
2
Total Output (kW)
644
Head of water (m)
61
Flow (m3/s)
0.6
Runner Diameter (mm)
311

Ura e Dashit, Albania, 2012

Scope of Supply:

Number of Units
1
Total Output (kW)
1 217
Head of water (m)
19.5
Flow (m3/s)
7
Runner Diameter (mm)
1 000

Suba, Colombia, 2012

Scope of Supply:

Number of Units
1
Total Output (kW)
2 645
Head of water (m)
49
Flow (m3/s)
5.65
Runner Diameter (mm)
950

Cannucciaro, Italy, 2012

Scope of Supply:

Number of Units
1
Total Output (kW)
870
Head of water (m)
10.81
Flow (m3/s)
9
Runner Diameter (mm)
1 300

Sotira, Albania, 2012

Scope of Supply:

Number of Units
2
Total Output (kW)
2 340
Head of water (m)
121
Flow (m3/s)
1.1
Runner Diameter (mm)
737

Sebesel, Romania, 2012

Scope of Supply:

Number of Units
2
Total Output (kW)
2 184
Head of water (m)
87.66
Flow (m3/s)
1.35
Runner Diameter (mm)
765

Coralito, Guatemala, 2012

Scope of Supply:

Number of Units
1
Total Output (kW)
2 180
Head of water (m)
291
Flow (m3/s)
0.850
Runner Diameter (mm)
770

Corteno, Italy, 2012

Scope of Supply:

Number of Units
2
Total Output (kW)
1 462
Head of water (m)
56.3
Flow (m3/s)
1.467
Runner Diameter (mm)
478

Santa Rosa, Chile, 2012

Scope of Supply: Pelton Turbine, Generator, Inletvalve

Number of Units
1
Total Output (kW)
1 168
Head of water (m)
329
Flow (m3/s)
0.4
Runner Diameter (mm)
736

Elena, Bulgaria, 2012

Scope of Supply:

Number of Units
1
Total Output (kW)
708
Head of water (m)
4
Flow (m3/s)
20
Runner Diameter (mm)
2 240

Geghi-Dam, Armenia, 2012

Scope of Supply:

Number of Units
2
Total Output (kW)
6 610
Head of water (m)
66
Flow (m3/s)
5.7
Runner Diameter (mm)
870

Giciye, Rwanda, 2012

Scope of Supply: Pelton Turbine, 5 jets (DE), Inlet Valve, Generator,Switchgears,Transformer, Control system,Scada; Bifurcator

Number of Units
2
Total Output (kW)
4 246
Head of water (m)
120.5
Flow (m3/s)
2
Runner Diameter (mm)
1 030

Rio Indio, Panama, 2012

Scope of Supply:

Number of Units
1
Total Output (kW)
295
Head of water (m)
41.7
Flow (m3/s)
0.8
Runner Diameter (mm)
409

Toranica, Macedonia, 2012

Scope of Supply:

Number of Units
1
Total Output (kW)
658
Head of water (m)
185.85
Flow (m3/s)
0.400
Runner Diameter (mm)
738

Kriva Reka 1, Macedonia, 2012

Scope of Supply:

Number of Units
1
Total Output (kW)
549
Head of water (m)
103.8
Flow (m3/s)
0.6
Runner Diameter (mm)
827

Kriva Reka 2, Macedonia, 2012

Scope of Supply:

Number of Units
1
Total Output (kW)
343
Head of water (m)
59.68
Flow (m3/s)
0.65
Runner Diameter (mm)
725

Mala Reka, Macedonia, 2012

Scope of Supply:

Number of Units
1
Total Output (kW)
245
Head of water (m)
133.26
Flow (m3/s)
0.21
Runner Diameter (mm)
245

Pobreg (big unit), Albania, 2012

Scope of Supply: Francis Turbine, Generator, Hydraulic Power Unit, Inletvalve, Control and Electrical Equipment

Number of Units
2
Total Output (kW)
19 154
Head of water (m)
95.43
Flow (m3/s)
10
Runner Diameter (mm)
1 080

Pobreg (Small Unit), Albania, 2012

Scope of Supply: Francis Turbine, Generator, Hydraulic Power Unit, Inletvalve, Control and Electrical Equipment

Number of Units
2
Total Output (kW)
7 750
Head of water (m)
96.6
Flow (m3/s)
4
Runner Diameter (mm)
670

Piro, Türkiye, 2012

Scope of Supply:

Number of Units
2
Total Output (kW)
4 216
Head of water (m)
52.4
Flow (m3/s)
4.5
Runner Diameter (mm)
819

Cerruje, Albania, 2011

Scope of Supply:

Number of Units
2
Total Output (kW)
5 720
Head of water (m)
321
Flow (m3/s)
1
Runner Diameter (mm)
970

Novaci 2- 4, Romania, 2011

Scope of Supply:

Number of Units
3
Total Output (kW)
1 995
Head of water (m)
50
Flow (m3/s)
1.5
Runner Diameter (mm)
530

Villar d’Arêne, France, 2011

Scope of Supply:

Number of Units
1
Total Output (kW)
257
Head of water (m)
483
Flow (m3/s)
0.061
Runner Diameter (mm)
585

Arsiero, Italy, 2011

Scope of Supply:

Number of Units
1
Total Output (kW)
613
Head of water (m)
18
Flow (m3/s)
3.800
Runner Diameter (mm)
880

Baciska Reka, Macedonia, 2011

Scope of Supply:

Number of Units
1
Total Output (kW)
1 180
Head of water (m)
145.51
Flow (m3/s)
0.91
Runner Diameter (mm)
653

Batu Hampar, Indonesia, 2011

Scope of Supply:

Number of Units
1
Total Output (kW)
970
Head of water (m)
62.6
Flow (m3/s)
1.75
Runner Diameter (mm)
507

Telli, Türkiye, 2011

Scope of Supply: Pelton Turbine , Generator, Inlet Valve, Hydraulic Power Unit,

Number of Units
2
Total Output (kW)
10 000
Head of water (m)
197.15
Flow (m3/s)
2.875
Runner Diameter (mm)
1 140

Berzes, Latvia , 2011

Scope of Supply:

Number of Units
1
Total Output (kW)
92
Head of water (m)
2.9
Flow (m3/s)
3.6
Runner Diameter (mm)
1 000

Brenguli, Latvia, 2011

Scope of Supply:

Number of Units
1
Total Output (kW)
118
Head of water (m)
5.1
Flow (m3/s)
2.6
Runner Diameter (mm)
800

Cartiera del Maglio – EPF, Italy, 2011

Scope of Supply:

Number of Units
1
Total Output (kW)
610
Head of water (m)
5.8
Flow (m3/s)
12
Runner Diameter (mm)
1 600

El Sindigo, Panama, 2011

Scope of Supply:

Number of Units
3
Total Output (kW)
18 000
Head of water (m)
240
Flow (m3/s)
2.8
Runner Diameter (mm)
1 050

Kamenicka, Macedonia, 2011

Scope of Supply:

Number of Units
1
Total Output (kW)
1 245
Head of water (m)
142
Flow (m3/s)
1
Runner Diameter (mm)
807

Kranska, Macedonia, 2011

Scope of Supply:

Number of Units
1
Total Output (kW)
610
Head of water (m)
152
Flow (m3/s)
0.450
Runner Diameter (mm)
667

Krkljanska, Macedonia, 2011

Scope of Supply:

Number of Units
1
Total Output (kW)
400
Head of water (m)
128.14
Flow (m3/s)
0.35
Runner Diameter (mm)
612

Lescherette, France, 2011

Scope of Supply:

Number of Units
1
Total Output (kW)
1 100
Head of water (m)
210
Flow (m3/s)
0.6
Runner Diameter (mm)
780

Novaci 1, Romania, 2011

Scope of Supply:

Number of Units
2
Total Output (kW)
706
Head of water (m)
48.8
Flow (m3/s)
0.82
Runner Diameter (mm)
398

Novakovici, Bosnia-Herzegovina, 2011

Scope of Supply: Francis Turbine, Generator, Inlet Valve, Hydraulic Power Unit, Plunger Valve

Number of Units
2
Total Output (kW)
7 600
Head of water (m)
129
Flow (m3/s)
3.3
Runner Diameter (mm)
705

Marenghello, Italy, 2011

Scope of Supply:

Number of Units
1
Total Output (kW)
781
Head of water (m)
3.67
Flow (m3/s)
24
Runner Diameter (mm)
2 240

Nuevo Imperial, Peru, 2011

Scope of Supply:

Number of Units
1
Total Output (kW)
4 110
Head of water (m)
61.5
Flow (m3/s)
7.5
Runner Diameter (mm)
1 023

Cerruje 2, Albania, 2011

Scope of Supply: Pelton Turbines,Generators,Valves, Switchgears, Transformer and Control System

Number of Units
1
Total Output (kW)
2 860
Head of water (m)
321
Flow (m3/s)
1
Runner Diameter (mm)
970

Carevets, Bulgaria, 2010

Scope of Supply: Turbines, Generators, HPUs, Trash Rack Cleaning Machine, Control & Electrical Equipment

Number of Units
2
Total Output (kW)
2 210
Head of water (m)
5.04
Flow (m3/s)
25
Runner Diameter (mm)
2 000

Selecka, Macedonia, 2010

Scope of Supply:

Number of Units
1
Total Output (kW)
1 845
Head of water (m)
299
Flow (m3/s)
0.7
Runner Diameter (mm)
700

Usaquen, Colombia, 2010

Scope of Supply:

Number of Units
1
Total Output (kW)
1 810
Head of water (m)
71.5
Flow (m3/s)
2.85
Runner Diameter (mm)
672

Brajcino, Macedonia, 2010

Scope of Supply:

Number of Units
1
Total Output (kW)
740
Head of water (m)
112
Flow (m3/s)
0.75
Runner Diameter (mm)
715

Brbusnica, Macedonia, 2010

Scope of Supply:

Number of Units
1
Total Output (kW)
595
Head of water (m)
103.55
Flow (m3/s)
0.65
Runner Diameter (mm)
687

St. Aventin, France, 2010

Scope of Supply:

Number of Units
1
Total Output (kW)
1 492
Head of water (m)
60
Flow (m3/s)
2.8
Runner Diameter (mm)
653

Slatino, Macedonia, 2010

Scope of Supply:

Number of Units
1
Total Output (kW)
585
Head of water (m)
219.6
Flow (m3/s)
0.3
Runner Diameter (mm)
602

San Joaquin 2, Guatemala, 2010

Scope of Supply:

Number of Units
1
Total Output (kW)
818
Head of water (m)
232
Flow (m3/s)
0.4
Runner Diameter (mm)
685

Drugovo, Macedonia, 2010

Scope of Supply:

Number of Units
1
Total Output (kW)
625
Head of water (m)
200.7
Flow (m3/s)
0.35
Runner Diameter (mm)
575

Kirkoswald, Sri Lanka, 2010

Scope of Supply:

Number of Units
3
Total Output (kW)
4 518
Head of water (m)
111
Flow (m3/s)
1.48
Runner Diameter (mm)
500

Gavoshan 2, Iran, 2010

Scope of Supply:

Number of Units
1
Total Output (kW)
1 100
Head of water (m)
50.6
Flow (m3/s)
2.4
Runner Diameter (mm)
640

Gavoshan 1, Iran, 2010

Scope of Supply:

Number of Units
1
Total Output (kW)
3 690
Head of water (m)
50.6
Flow (m3/s)
8
Runner Diameter (mm)
1 150

Buyeo I – IV, South Korea, 2010

Scope of Supply: Turbine, Gear Box, Hydraulic Power Unit

Number of Units
4
Total Output (kW)
2 888
Head of water (m)
2.3
Flow (m3/s)
34.5
Runner Diameter (mm)
2 850

Gangchung I-III, South Korea, 2010

Scope of Supply: Turbine, Gear Box, Hydraulic Power Unit

Number of Units
3
Total Output (kW)
6 030
Head of water (m)
4.7
Flow (m3/s)
44.8
Runner Diameter (mm)
2 800

El Toro 2, Chile, 2010

Scope of Supply: Pelton Turbine, Generator, Inlet Valve, Hydraulic Power Unit, Control and Protection Equipment, MV Switchgear, Main Transformer

Number of Units
1
Total Output (kW)
1 180
Head of water (m)
177
Flow (m3/s)
0.75
Runner Diameter (mm)
725

Alto Hospicio, Chile, 2010

Scope of Supply: Pelton Turbine, Generator, Inlet Valve, Hydraulic Power Unit, Control and Protection Equipment, MV Switchgear, Main Transformer

Number of Units
1
Total Output (kW)
1 167
Head of water (m)
175
Flow (m3/s)
0.75
Runner Diameter (mm)
725

Keumnan I-III, South Korea, 2010

Scope of Supply: Turbine, Gear Box, Hydraulic Power Unit

Number of Units
3
Total Output (kW)
2 514
Head of water (m)
2.51
Flow (m3/s)
37.8
Runner Diameter (mm)
2 850

Keumgang I & II, South Korea, 2010

Scope of Supply: Turbine, Gear Box, Hydraulic Power Unit

Number of Units
2
Total Output (kW)
3 484
Head of water (m)
4.2
Flow (m3/s)
45
Runner Diameter (mm)
2 800

Chuksan I, South Korea, 2010

Scope of Supply: Turbine, Gear Box, Hydraulic Power Unit

Number of Units
2
Total Output (kW)
1 452
Head of water (m)
4.5
Flow (m3/s)
16.5
Runner Diameter (mm)
1 800

Palisse, France, 2010

Scope of Supply:

Number of Units
1
Total Output (kW)
2 678
Head of water (m)
26
Flow (m3/s)
11.5
Runner Diameter (mm)
1 400

Gumi I & II, South Korea, 2010

Scope of Supply: Turbine, Gear Box, Hydraulic Power Unit

Number of Units
2
Total Output (kW)
3 468
Head of water (m)
6.6
Flow (m3/s)
28.5
Runner Diameter (mm)
2 000

Alvito, Portugal, 2009

Scope of Supply: Kaplan Schacht-Turbine

Number of Units
2
Total Output (kW)
3 750
Head of water (m)
9.6
Flow (m3/s)
20.3
Runner Diameter (mm)
1 800

Urago, Italy, 2008

Scope of Supply: Kaplan Schacht-Turbine

Number of Units
1
Total Output (kW)
1 850
Head of water (m)
8.85
Flow (m3/s)
24.2
Runner Diameter (mm)
2 000

Studen Kladenets, Bulgaria, 2008

Scope of Supply: Francis Spiral-Turbine

Number of Units
1
Total Output (kW)
1 175
Head of water (m)
57.5
Flow (m3/s)
2.3
Runner Diameter (mm)
615

Bruggmühle, Switzerland, 2008

Scope of Supply: Francis Spiral-Turbine

Number of Units
1
Total Output (kW)
13
Head of water (m)
3.67
Flow (m3/s)
0.4
Runner Diameter (mm)
445

Caraglio, Italy, 2008

Scope of Supply:

Number of Units
1
Total Output (kW)
61
Head of water (m)
175
Flow (m3/s)
0.04
Runner Diameter (mm)
355

Santa Rita, Colombia, 2008

Scope of Supply: Francis Spiral-Turbine

Number of Units
1
Total Output (kW)
1 350
Head of water (m)
74
Flow (m3/s)
2
Runner Diameter (mm)
555

Palosco, Italy, 2008

Scope of Supply: Kaplan Schacht-Turbine

Number of Units
1
Total Output (kW)
1 900
Head of water (m)
6.38
Flow (m3/s)
35.2
Runner Diameter (mm)
2 400

Sewage treatment plant Bukarest, Romania, 2008

Scope of Supply: Kaplan Rohrtubine

Number of Units
3
Total Output (kW)
450
Head of water (m)
4.5
Flow (m3/s)
3.34
Runner Diameter (mm)
850

Madland, Norway, 2008

Scope of Supply: Francis Spiral-Turbine

Number of Units
1
Total Output (kW)
1 870
Head of water (m)
84
Flow (m3/s)
2.5
Runner Diameter (mm)
572

Dinc II, Türkiye, 2008

Scope of Supply: 4 Jet Vertical Pelton

Number of Units
1
Total Output (kW)
910
Head of water (m)
85.69
Flow (m3/s)
0.65
Runner Diameter (mm)
890

Dinc I, Türkiye, 2008

Scope of Supply: 2 Jet horizontal Pelton

Number of Units
1
Total Output (kW)
1 040
Head of water (m)
181.95
Flow (m3/s)
0.65
Runner Diameter (mm)
730

Neuplatendorf, Germany, 2008

Scope of Supply: Francis Turbine, Generator, HPU, Control system

Number of Units
1
Total Output (kW)
350
Head of water (m)
53
Flow (m3/s)
0.75
Runner Diameter (mm)
390

Beaumont-Monteux, France, 2007

Scope of Supply: Kaplan Pit-Turbine

Number of Units
1
Total Output (kW)
1 572
Head of water (m)
10
Flow (m3/s)
18
Runner Diameter (mm)
1 700

Bergesli, Norway, 2007

Scope of Supply: Pelton Ringgehäuse

Number of Units
1
Total Output (kW)
818
Head of water (m)
103
Flow (m3/s)
0.9
Runner Diameter (mm)
825

Gornerenbach I, Switzerland, 2007

Scope of Supply: Kaplan Spiral-Turbine

Number of Units
1
Total Output (kW)
74
Head of water (m)
12.3
Flow (m3/s)
0.68
Runner Diameter (mm)
400

Gornerenbach II, Switzerland, 2007

Scope of Supply: Francis Spiral-Turbine

Number of Units
1
Total Output (kW)
73
Head of water (m)
12.3
Flow (m3/s)
0.68
Runner Diameter (mm)
400

Kamari, Estonia, 2007

Scope of Supply: Kaplan Schacht-Turbine

Number of Units
1
Total Output (kW)
311
Head of water (m)
5
Flow (m3/s)
7.2
Runner Diameter (mm)
1 200

La Gagliarda, Italy, 2007

Scope of Supply: Pelton

Number of Units
1
Total Output (kW)
122
Head of water (m)
140
Flow (m3/s)
0.1
Runner Diameter (mm)
475

Lesegno, Italy, 2007

Scope of Supply: Kaplan Schacht-Turbine

Number of Units
2
Total Output (kW)
730
Head of water (m)
8.44
Flow (m3/s)
5
Runner Diameter (mm)
900

Malakasiotiko – Francis, Greece, 2007

Scope of Supply: Francis Spiral-Turbine

Number of Units
1
Total Output (kW)
3 005
Head of water (m)
105.9
Flow (m3/s)
3.2
Runner Diameter (mm)
630

Malakasiotiko – Pelton, Greece, 2007

Scope of Supply: Pelton

Number of Units
1
Total Output (kW)
1 455
Head of water (m)
105.56
Flow (m3/s)
1.56
Runner Diameter (mm)
835

Sigrist-Schwarzwaldalp, Switzerland, 2006

Scope of Supply: Pelton Laufrad

Number of Units
1
Total Output (kW)
76
Head of water (m)
158.3
Flow (m3/s)
0.055
Runner Diameter (mm)
500

Curua, Brazil, 2006

Scope of Supply: Francis Spiral-Turbine

Number of Units
4
Total Output (kW)
32 380
Head of water (m)
137.4
Flow (m3/s)
6.6
Runner Diameter (mm)
960

Fumaca, Brazil, 2006

Scope of Supply: Francis Spiral-Turbine

Number of Units
2
Total Output (kW)
4 630
Head of water (m)
75.2
Flow (m3/s)
3.45
Runner Diameter (mm)
660

Kaleto II, Bulgaria, 2006

Scope of Supply: Francis Spiral-Turbine

Number of Units
1
Total Output (kW)
2 310
Head of water (m)
64
Flow (m3/s)
4
Runner Diameter (mm)
790

Kaleto I, Bulgaria, 2006

Scope of Supply: Francis Spiral-Turbine

Number of Units
1
Total Output (kW)
410
Head of water (m)
65
Flow (m3/s)
0.7
Runner Diameter (mm)
380

Planena 1+ 2, Germany, 2006

Scope of Supply: Kaplan Pit-Turbine

Number of Units
1
Total Output (kW)
600
Head of water (m)
2.4
Flow (m3/s)
25
Runner Diameter (mm)
2 300

Mambai, Brazil, 2006

Scope of Supply: Francis Spiral-Turbine

Number of Units
2
Total Output (kW)
12 500
Head of water (m)
124.6
Flow (m3/s)
5.54
Runner Diameter (mm)
850

Marchfeldkanal, Austria, 2006

Scope of Supply:

Number of Units
2
Total Output (kW)
106
Head of water (m)
2
Flow (m3/s)
3
Runner Diameter (mm)
1 000

Modrudalur, Iceland, 2006

Scope of Supply:

Number of Units
1
Total Output (kW)
62
Head of water (m)
10.5
Flow (m3/s)
0.7
Runner Diameter (mm)
450

Wiestal, Austria, 2005

Scope of Supply:

Number of Units
1
Total Output (kW)
240
Head of water (m)
4.9
Flow (m3/s)
5.5
Runner Diameter (mm)
1 120

Tschiderer, Austria, 2005

Scope of Supply: Kaplan Turbine, waagrechte Wellenlage, fünfflügelig, Laufradflügeln und Leitradschaufeln mittels Hydraulikzylinder regulierbar

Number of Units
1
Total Output (kW)
874
Head of water (m)
11
Flow (m3/s)
8.250
Runner Diameter (mm)
1 250

Campina, Romania, 2005

Scope of Supply: Pelton Turbine for drinking water , Generator, Valve, Control System

Number of Units
1
Total Output (kW)
71
Head of water (m)
49.9
Flow (m3/s)
0.164
Runner Diameter (mm)
631

Entec-St.Martin, Switzerland, 2005

Scope of Supply:

Number of Units
1
Total Output (kW)
57
Head of water (m)
385
Flow (m3/s)
0.017
Runner Diameter (mm)
530
Consent Management Platform by Real Cookie Banner
